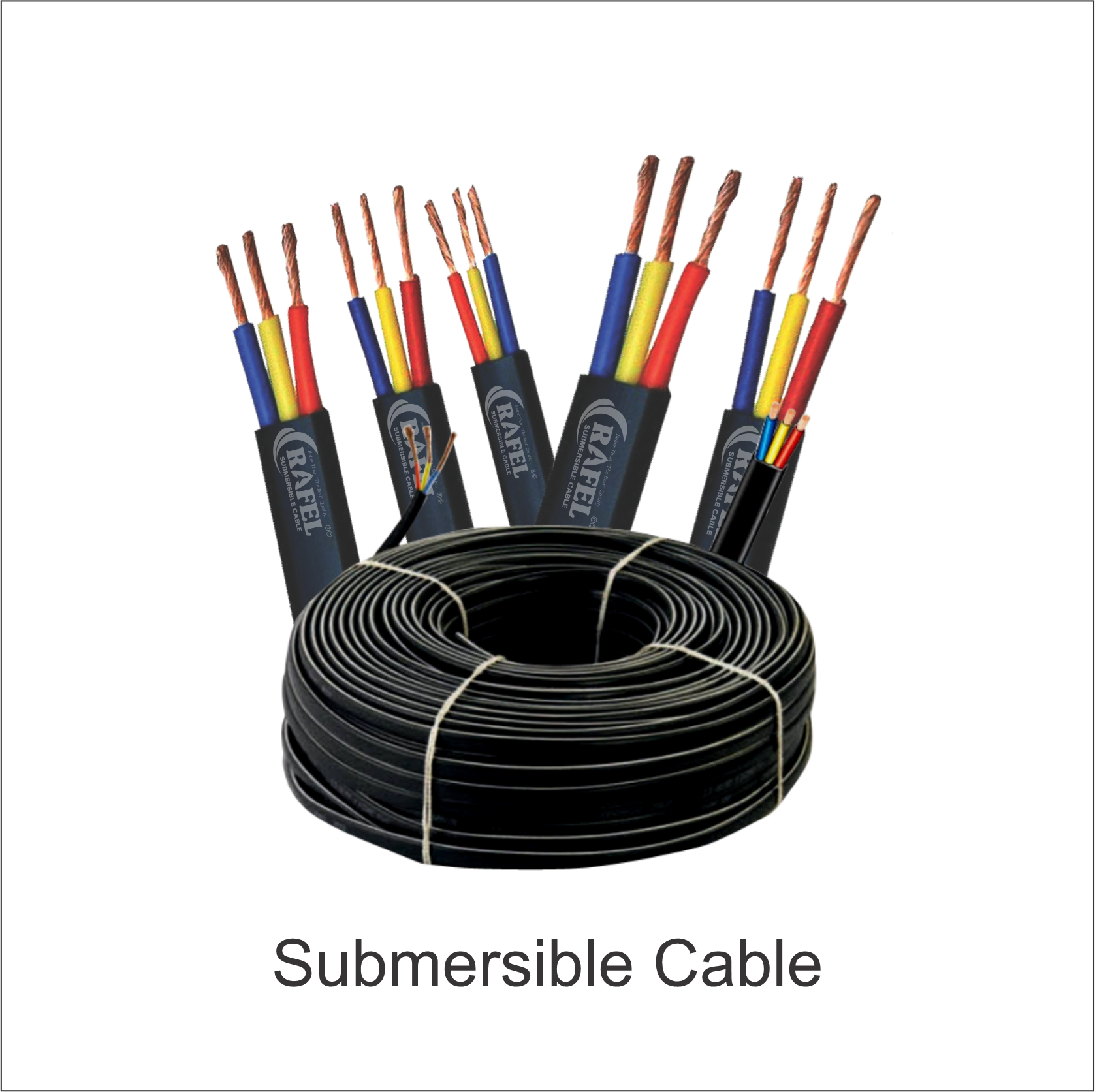

CABLE SELECTION CHART APPLICATIONS : V-3, V-4, V-5, V-6 SUBMERSIBLE PUMPS & HORIZNTAL OPENWELLPUMPS

CABLE SELECTION CHART APPLICATIONS : V-3, V-4, V-5, V-6 SUBMERSIBLE PUMPS & HORIZNTAL OPENWELLPUMPS

Note :



(1) Dol - Single Cable 1 HP - 7.5 HP Star - Delta - Double Cable 10 HP and above.

(2) For Star Delta Starting reduce current by 1/3 for selecting suitable cable



Example :



For a 20 HP motor at 350 volts & 90 meters actual cable length, calculated lenght = (415 / 350) X 90 = 107m.

The size of the cable to be selected for 107m, from the cart is 6 mm2



Converstion Table : 1m = 3.28ft & 1ft =0.305m

For other Voltages the cable size is to be selected as Follows : Calculated length : (220/Volt)xactual length



Inquiry




Submersible Pump Set Cable Selection Chart For 415V - Three Phase - 50Hz

LENGTH IN METERS



H.P. 10 20 30 40 50 60 70 80 90 100 120 140 160 180 200 250 300 350 400 450 500
1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2.5 2.5 2.5 4 4
2 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2.5 2.5 2.5 2.5 2.5 4 4 4 4
3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2.5 2.5 2.5 2.5 4 4 4 6 6 6
4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2.5 2.5 4 4 4 4 6 6 6 10 10
5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2.5 2.5 4 4 4 6 6 10 10 10 10
6 1.5 1.5 1.5 1.5 1.5 1.5 2.5 2.5 4 4 2.5 4 4 4 6 6 10 10 10 10 16
7.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 4 4 4 6 6 10 10 10 16 16 16
10 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2.5 2.5 2.5 4 4 4 6 6 10 10 10 10 16
12.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 4 4 4 4 6 6 6 10 10 10 16 16 16
15 2.5 2.5 2.5 2.5 2.5 2.5 2.5 4 4 4 4 6 6 6 10 10 10 16 16 16 16
17.5 4 4 4 4 4 4 4 4 4 4 6 6 10 10 10 10 16 16 16 25 25
20 4 4 4 4 4 4 4 4 4 6 6 10 10 10 10 16 16 16 25 25 25
25 4 4 4 4 4 4 4 4 4 6 6 10 10 10 10 16 16 25 25 25 35




Submersible Pump Set Cable Selection Chart For 220V - Single Phase (3Core) - 50Hz

LENGTH IN METERS



H.P. 10 20 30 40 50 60 70 80 90 100 120 140 160 180 200 250 300 350 400 450 500
0.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2.5 2.5 2.5 4 4 4 6 6 6 10 10
1 1.5 1.5 1.5 1.5 1.5 1.5 2.5 2.5 2.5 2.5 4 4 4 6 6 6 10 10 10 16 16
1.5 1.5 1.5 1.5 2.5 2.5 2.5 4 4 4 6 6 10 10 10 10 16 16 16 25 25 25
2 1.5 1.5 2.5 2.5 4 4 4 6 6 6 10 10 10 16 16 16 25 25 25 35 35
3 1.5 1.5 2.5 2.5 4 4 6 6 6 10 10 10 16 16 16 16 25 25 25 35 35
4 1.5 2.5 2.5 4 4 6 6 10 10 10 10 16 16 16 16 25 25 25 35 35 35
5 2.5 2.5 4 4 6 6 10 10 10 10 16 16 16 25 25 25 35 35 50 50 50
